VIDEO ANALYSER
MEASUREMENT & INSPECTION SYSTEM FOR FIBRES, YARNS, FABRICS AND NON-WOVEN VIDEO ANALYSER.
REFERENCE STANDARDS: ISO 137, UNI EN 12751, UNI 5423, UNI ISO 1130, ASTM D629, ASTM D2130, ASTM D276, AATCC 20, IWTO 8, IWS TM24, NIKE (section H, fiber content testing requirements).

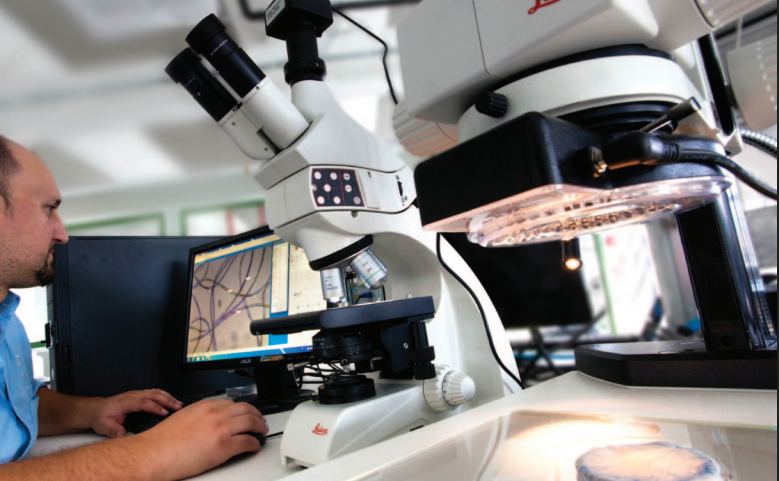

The most versatile and advanced high definition computerised system for microscopic analysis of fibres, yarns, fabrics, non-woven and small parts.
- Suitable to perform a variety of analysis, such as:
- fibre fineness (conforms to ISO 137, UNI ISO 1130, UNI 5423, ASTM D276, ASTM D2130 standards);
- fibre identification;
- fibre and yarn cross section;
- research of foreign fibres and of the contamination particles;
- fabric structure (warp and weft density);
- fabric composition, conforms to IWTO 8, IWS TM24, ISO 137, ASTM D2130, NIKE (Section H, Fiber Content Testing Requirements) Standards;
- non-woven uniformity (evenness of fibre distribution);
- inspection of mechanical parts (i.e.: needles, spinnerets, travellers, zippers, etc.);
- monitor the quality of purchased raw materials.

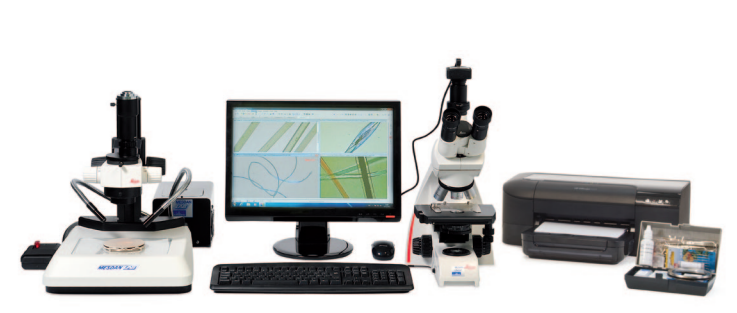

The system is available in 3 versions:
- Video Analyser (Code 250D), complete with both Biological and Stereo Microscope. ·
- MicroLab (Code 250E), inclusive of Biological
- Microscope only. · MacroLab (Code 250F), inclusive of Stereo Microscope only.
DIMENSIONS / POWER SUPPLY
- Weight: 53 kg.
- Dimensions: (L) 1080 x (W) 700 x (H) 700 mm
- Power supply: 100-240 Vac, 50/60 Hz
