SPECIFICATION
- External Dimensions 204mm(L)×80mm(D)×80mm(H)
- Weight Approx. 650g (including battery’s weight)
- Related Standards JIS Z 8722, ISO 7724, DIN 5033･5036･6174, ASTM D 2244･E 308･E 1164, JIS K 7654, ISO 5/4, ANSI PH 2.17, DIN 16536
- Light Source LED
- Spectrograph Transparency grating
- Optical Observers 2ﾟ, 10ﾟ
- Measuring Time Approx. 1 Second
- Machine Difference ⊿E* 0.3 within (Average of BCRA tiles with 12 color standards)
- Averaging Possible (10MAX times)
- Data Memory 400 Data
- Reference Colors 40 Data
- Automatic reference judgment function Possible
- Display Area Size 320x240dot Color Graphic LCD
- Language English / Japanese or English / Spanish / French
- Power Supply Li-ion battery (3.7V-3,240mAh)
- AC Adapter DC 5V-2A 100-240V
- Recharge Time Approx. 3 hours
- Measurements / Charge Approx. 1,000 (Internal Testing)
- Standard Accessories Calibration Board, Zero Cap, AC Adapter (Conversion plug) Operation Manual, Driver (software), USB Cable
|
CHARACTERISTICS |
|
|
Color Graphic LCD |
Approximate color display of measurement points. Enables visual confirmation of measurement points. |
|
Handy Type |
Compact and lightweight. |
|
Easy Operation |
Manual-less operation. |
|
Rapid Charging |
Built-in Li-ion battery for Rapid recharging. Measurement is possible while charging. |
|
Exchange of Aperture Diameter |
Interchangeable Aperture Diameter between φ10 and φ3. |
|
Color Control |
For color management in any Field. Wide variety of measurement items. |
|
Printing Field |
Supports ink density and halftone dot management. |
|
Printed Circuit Board Field |
Enables color control and pass/fail judgment of substrates, resist, and silk. |
|

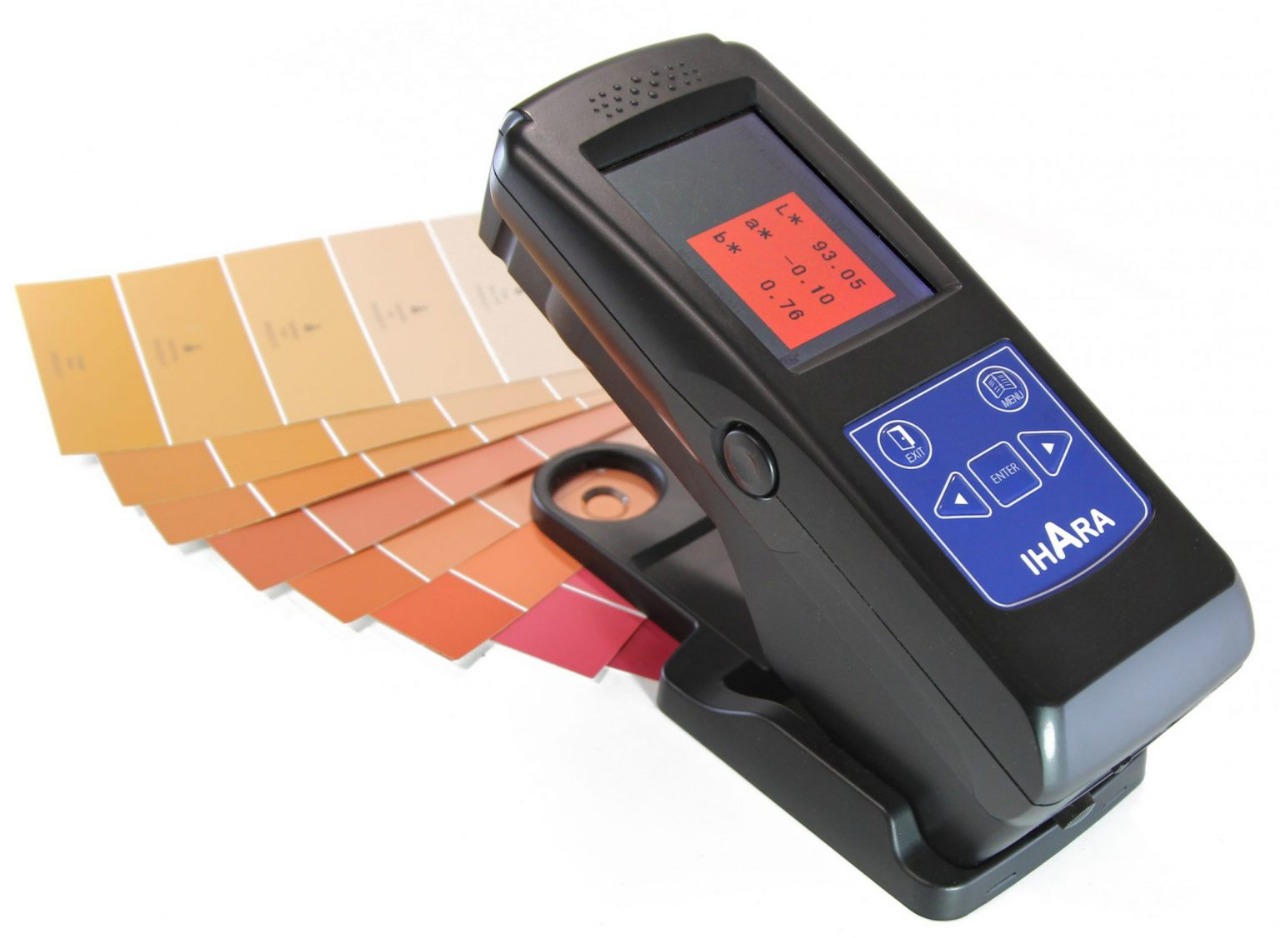

Handy type model |
Compact and lightweight Spectrophotometer |
|
Easy operation |
5 sheet keys,2 push buttons |
|
Measuring Geometry |
5/0°（Ring-shaped illuminate） |
|
Measurement Wavelength |
400nm-700nm |
|
Aperture Diameter |
φ10mm |
|
φ3mm |
|
|
High Precision (Repeatability) |
⊿E*ab≦0.05 |
|
Multifunction |
Chromaticity ( XYZ, L*a*b*, other ) Color Difference Formula (⊿E*ab, ⊿ECMC, ⊿E*94, ⊿E00, other ) Densitometer Function（CMYK Density, Dens Difference, Dot Area, Dot Gain, INK-Trap） |
|

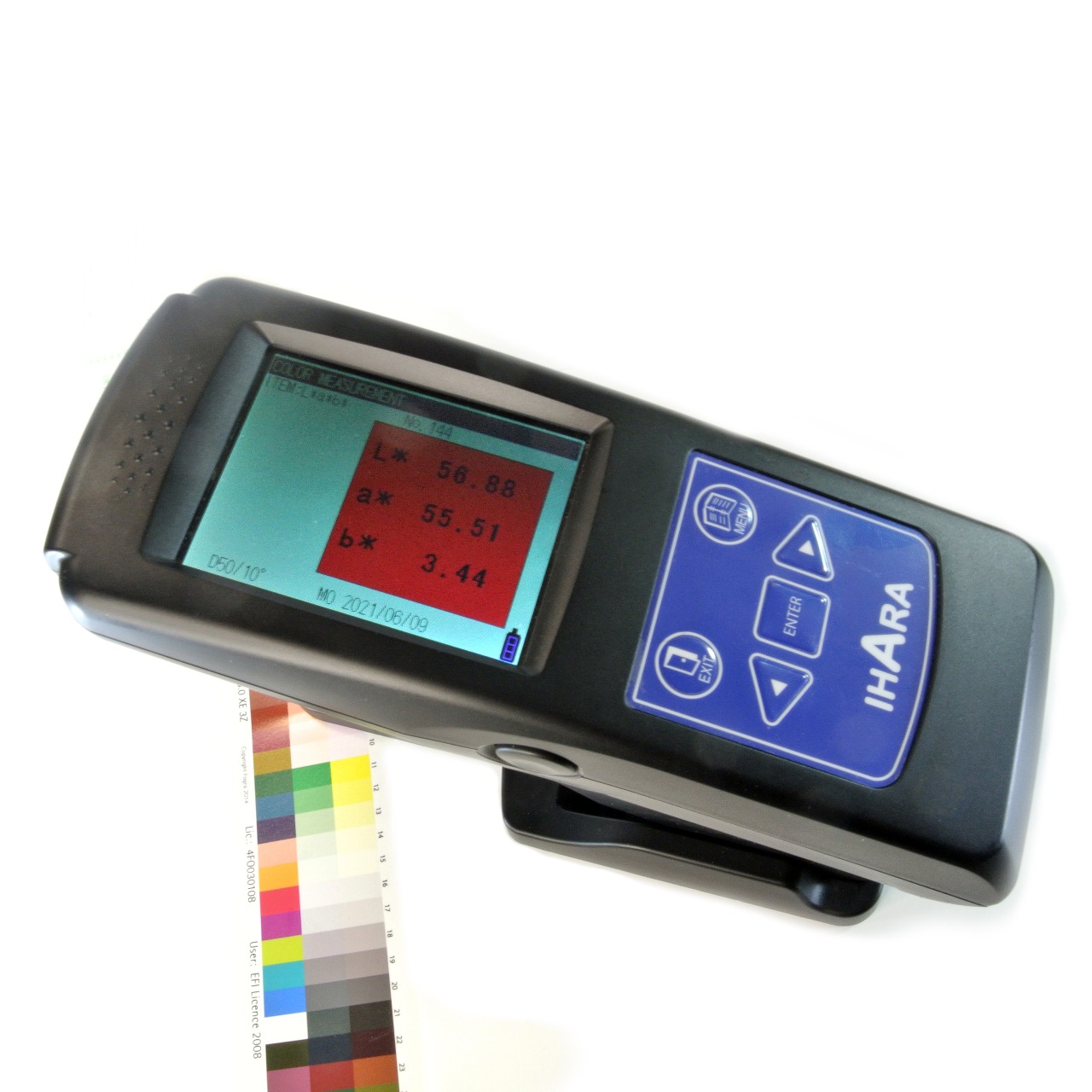

Color Graphic LCD |
Large Color Graphic LCD |
|
User-friendly |
Left-handed operation is also supported by the display inversion function. Equipped with Buzzer |
|
Data Interface |
USB、RS-232C |
|
Dens IL luminant Condition |
Compatible with M0 (Illuminate Type D50), M2（UV Cut） |
